Year: 2004 Width: 2840 MM

REFERENCE ID : CTTP223

Master Indigo Dyeing Line

  • Purpose: Continuous dyeing and treatment for modern denims, including mercerising, bottoming, topping, sulphur dyeing, and classic indigo blue, designed for maximum flexibility



  • Roller Width: 1800mm



  • Year Installed: 2004 (Dye vats and padders manufactured in 1994 and reconditioned by Master when the line was extended and installed in 2004)



  • Components:



    • Beam Creels (2 units):



    • Maximum 14 beams of 1400mm diameter



    • One creel can be prepared while the other is running for maximum efficiency



    • Automatic yarn tension adjuster



    • Yarn pulling and feeding element



    • Mercerising/Wetting Process:



    • Soda process or pre-dyeing vat with padder



    • 6 steam heated, PTFE-coated timing cans (800mm dia.) for mercerising



    • Fixing or 2nd wetting or washing vat with stainless steel tank and mangle



  • Dyeing Section:



    • Neutralising or washing vat



    • Washing vat with stainless steel tank and padder



    • 6 dyeing vats with stainless steel tank, intermediate padders, and overhead oxidising roller arrangement with finned stainless steel rollers and dancing roller



    • Counter current dye circulation system with filters, dosing, and pumps



    • Circulation tank for indigo



    • Overhead-mounted steamer for colour denim/oxidiser for indigo



  • Post-Dyeing Treatment:



    • 3 washing or post-dyeing treatment vats with intermediate padders



    • Accumulator for automatic storage of dyed yarn during beam changes (150m capacity, 5 minutes at 30m/min)



    • Drying cylinder pre-dryer range with 10 PTFE-coated drying cylinders



    • Sizing Section (Karl Mayer-Rotal, 2002):



    • Sizing box with prewetting (double dip, double nip)



    • Drying cylinder range with 14 PTFE-coated drying cylinders

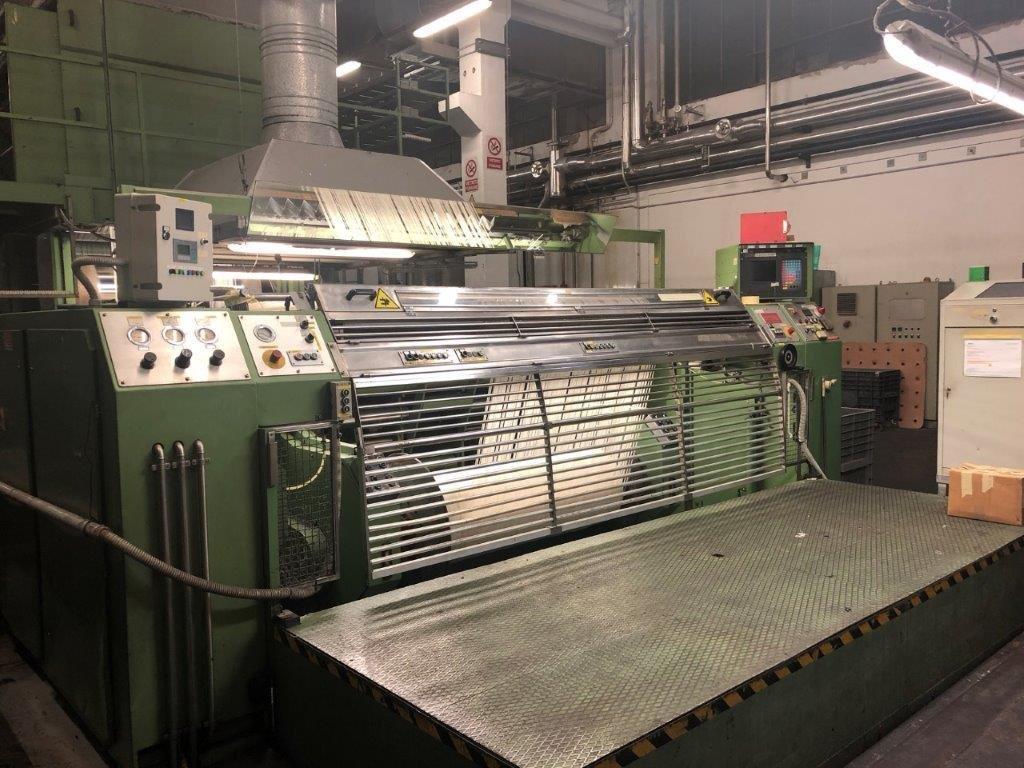

  • Warp beaming head:



    • Roller width 2840mm



    • Maximum beam width 240cm between flanges



    • Maximum weaving beam diameter 1600mm



  • Size Preparation Kitchen:

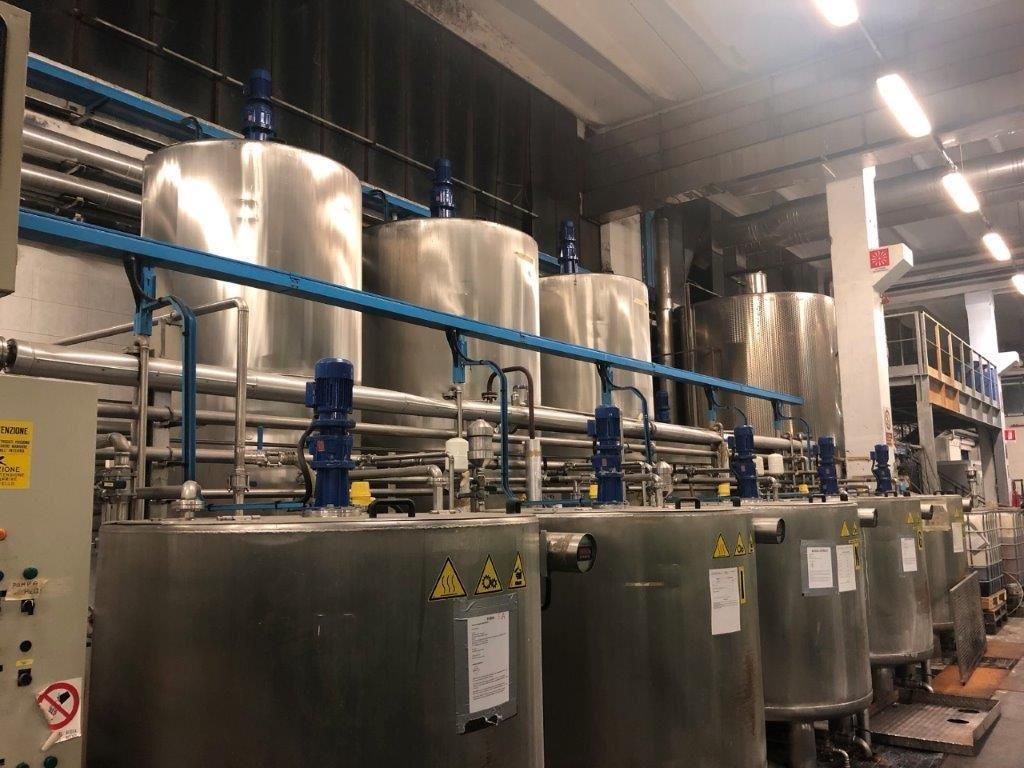

    • Indigo dye & chemicals storage system:



      • 2 tanks for chemical bath pretreatment



      • 5 indigo tanks



      • 1 sulphur black tank



      • 3 stocking tanks for indigo



      • 1 tank for softened water



  • Other Features:



    • Canopies



    • Electrical control panels
